MB-1500 / MB-2500

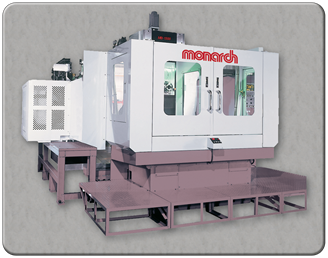

MB-1500










This is a traveling column machine with a fixed table design for less floor space consumption as well as a increased work piece work piece weight limit. The fixed table can be removed, allowing the traveling column portion of the machine to be integrated into many custom designs.



Detailed Specifications

  MB-1500
  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

59"

1,500 mm

Travel in Y Axis

35.4" (47")

899 (1193) mm

Travel in Z Axis

31.5"

800 mm

Work Area

Inch

Metric

Work Area in X Axis

74"

1879 mm

Work Area in Y Axis

36.6"

930 mm

Spindle Nose to Table(max)

35.4"

900 mm

Spindle Nose to Table(min)

0"

0 mm

Table Load (max)

22,000 lbs

10,000 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

200 ipm

5 mpm

Feed Rate - Y axis

200 ipm

5 mpm

Feed Rate - Z axis

200 ipm

5 mpm

Traverse Rate - X axis

393 ipm (600)

10(15) mpm

Traverse Rate - Y axis

393 ipm (600)

10(15) mpm

Traverse Rate - Z axis

393 ipm (600)

10(15) mpm

Positioning (±)

0.00025"

.005 mm

Repeatability (±)

0.0002"

.0025 mm

Spindle Information

40 Taper

50 Taper

Spindle Speed Ranges

6000 rpm

4000 rpm

Spindle Chuck Taper

Cat 40

Cat 50

Spindle Drive HP

20 hp / 15 kw

Max Torque (Std)

281 ft lbs / 381.6 nm

Drive System

gear drive

Tool Changer

40 Taper Std

Tool Storage Capacity

40 (60, 120 Optional)

Max Dia.(at full capacity)

9.8" / 248 mm

Max Dia.(Adjacent Empty)

11.8" / 299 mm

Max. Length of tool stored

11.8" / 299 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)



General

Inch

Metric

Floor Space Requirement

187" x 240"

4750 x 6096 mm

Height (Maximum)

140"

3556 mm

Shipping Weight

44,000 lbs

19,958 kg

MB-2500
  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

98.5"

2,500 mm

Travel in Y Axis

35.4" (47")

899 (1193) mm

Travel in Z Axis

31.5"

800 mm

Work Area

Inch

Metric

Work Area in X Axis

113.4"

2,880 mm

Work Area in Y Axis

36.6"

930 mm

Spindle Nose to Table(max)

35.4"

900 mm

Spindle Nose to Table(min)

0"

0 mm

Table Load (max)

39,600 lbs

18,000 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

200 ipm

5 mpm

Feed Rate - Y axis

200 ipm

5 mpm

Feed Rate - Z axis

200 ipm

5 mpm

Traverse Rate - X axis

393 ipm (600)

10(15) mpm

Traverse Rate - Y axis

393 ipm (600)

10(15) mpm

Traverse Rate - Z axis

393 ipm (600)

10(15) mpm

Positioning (±)

0.00025"

.005 mm

Repeatability (±)

0.0002"

.0025 mm

Spindle Information

40 Taper

50 Taper

Spindle Speed Ranges

6000 rpm

4000 rpm

Spindle Chuck Taper

Cat 40

Cat 50

Spindle Drive HP

20 hp / 15 kw

Max Torque (Std)

281 ft lbs / 381.6 nm

Drive System

gear drive

Tool Changer

40 Taper Std

Tool Storage Capacity

40 (60, 120 Optional)

Max Dia.(at full capacity)

9.8" / 248 mm

Max Dia.(Adjacent Empty)

11.8" / 299 mm

Max. Length of tool stored

11.8" / 299 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)



General

Inch

Metric

Floor Space Requirement

236" x 240"

5,994 x 6,096 mm

Height (Maximum)

140"

3556 mm

Shipping Weight

44,000 lbs

19,958 kg
