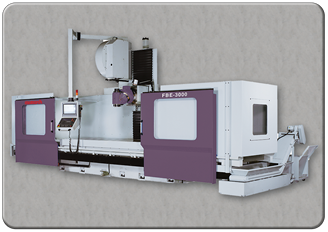

**Travel in X Axis

59" - 126"

1,500 - 3,200 mm

Travel in Y Axis

39.3"

1,000 mm

Travel in Z Axis

38" - 39.3"

965 - 1,000 mm

**Work Area in X Axis

62" - 122"

1,574 - 3,100 mm

Work Area in Y Axis

41"

1,041 mm

Spindle Nose to Table(max)

42.4"

1,078 mm

Spindle Nose to Table(min)

5"

128 mm

**Table Load (max)

6,600 - 17,600 lbs

3,000 - 8,000 kg

Feed Rate - X axis

315 ipm

8 mpm

Feed Rate - Y axis

315 ipm

8 mpm

Feed Rate - Z axis

315 ipm

8 mpm

Traverse Rate - X axis

393 ipm

10 mpm

Traverse Rate - Y axis

393 ipm

10 mpm

Traverse Rate - Z axis

393 ipm

10 mpm

Positioning (±)

0.0003"

0.014 mm

Repeatability (±)

0.00015"

0.010 mm

Spindle Speed Ranges

3,500 rpm

Spindle Chuck Taper

CAT 50

Spindle Drive HP

22 / 33 hp (16.4 / 24.6 kw)

Max Torque (Std)

440 ft lbs / 600 nm

Drive System

Gear Drive

Tool Storage Capacity

24

Max Dia.(at full capacity)

9.84" / 250 mm

Max Dia.(Adjacent Empty)

9.84" / 250 mm

Max. Length of tool stored

11.8" / 300 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)

4.5 sec

Floor Space Requirement

Order Dependant

Height (Maximum)

**Shipping Weight

22,000 - 29,700 lbs

9,979 - 13,471 kg
