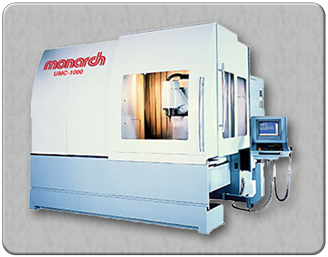

55 Axis machining center a one meter rotary table and tilt spindle axis to combine with X, Y and Z for the 5 axis. Available with a 40 taper or HSK spindle for high speed applications.
Axis Travels
Inch
Metric
Travel in X Axis
39.3"
1000 mm
Travel in Y Axis
31.5"
800 mm
Travel in Z Axis
27.5"
698 mm
Work Area
Work Area in X Axis
Work Area in Y Axis
Spindle Nose to Table(max)
33.5"
850 mm
Spindle Nose to Table(min)
5.9"
149 mm
Table Load (max)
3,300 lbs
1,500 kg
Axis Specifications
Feed Rate - X axis
393 ipm
10 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
944 ipm
24 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0002 in
.005 mm
Repeatability (±)
0.0001 in
.0025 mm
Spindle Information
40 Taper
Spindle Speed Ranges
500 - 16,000 rpm
Spindle Chuck Taper
40
Spindle Drive HP
24 hp / 18 kw
Max Torque (Std)
53 ft lbs / 72 nm
Drive System
Motor Spindle
Tool Changer
Tool Storage Capacity
Max Dia.(at full capacity)
4.7" / 119 mm
Max Dia.(Adjacent Empty)
9.8" / 248 mm
Max. Length of tool stored
11.8" / 299 mm
Tool Weight (Max)
15 lbs / 6.8 kg
Tool-to-Tool (avg)
3 sec
General
Floor Space Requirement
146" X 177"
3708 x 4495 mm
Height (Maximum)
118"
2997 mm
Shipping Weight
33,000 lbs
15,000 kg
