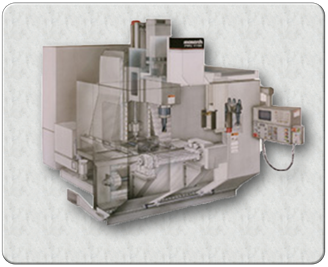

The Monarch PMC-V750 Production Machining Center combines power, speed & accuracy coupled with a very flexible, easy to access work zone for the highly efficient and accurate machining of a wide variety of components.
Axis Travels
Inch
Metric
Travel in X Axis
29.5"
750 mm
Travel in Y Axis
17.7"
450 mm
Travel in Z Axis
21.7"
550 mm
Work Area
Work Area in X Axis
Customer Dependant on options purchased.
Work Area in Y Axis
Spindle Nose to Table(max)
Spindle Nose to Table(min)
Table Load (max)
2750 lbs
1248 kg
Axis Specifications
Feed Rate - X axis
393 ipm
10 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1,380 ipm
35 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0002"
0.005 mm.
Repeatability (±)
0.0001"
0.0025 mm
Spindle Information
50 Taper
Spindle Speed Ranges
8,000 r.p.m
Spindle Chuck Taper
Cat 50
Spindle Drive HP
30 hp / 22 kw
Max Torque (Std)
400 / 542 nm
Drive System
Geared Head
Tool Changer
Tool Storage Capacity
22
Max Dia.(at full capacity)
5" / 127 mm
Max Dia.(Adjacent Empty)
Max. Length of tool stored
15" / 380 mm
Tool Weight (Max)
30lbs / 13.6 kg
Tool-to-Tool (avg)
3 Sec.
General
Floor Space Requirement
151" x 102 "
3,835 x 2,590 mm
Height (Maximum)
129"
3,280 mm
Shipping Weight
19,000 lbs
8,618 kg
