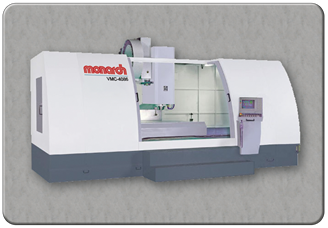

Large machining envelope with widened doors to facilitate loading and unloading of parts. Large base design to support table and saddle through the entire travel eliminatiing overhand for increased accuracy.
Axis Travels
Inch
Metric
Travel in X Axis
86"
2,184 mm
Travel in Y Axis
39.3"
998 mm
Travel in Z Axis
27.5" (35.4" opt)
698 mm (900 mm)
Work Area
Work Area in X Axis
95"
2,413 mm
Work Area in Y Axis
39"
990 mm
Spindle Nose to Table(max)
33.9" (37.9")
861 mm (962 mm)
Spindle Nose to Table(min)
5.9" (7.9")
159 mm (200 mm)
Table Load (max)
7,700 lbs
3,492 kg
Axis Specifications
Feed Rate - X axis
395 ipm
10 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
472 ipm
12 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0003"
0.0076 mm
Repeatability (±)
0.0002"
0.005 mm
Spindle Information
50 Taper
Spindle Speed Ranges
6,000 rpm (8,000)
Spindle Chuck Taper
Cat 50
Spindle Drive HP
20 hp (30) / 15 kw (22)
Max Torque (Std)
Drive System
Belt Drive (Gear Drive)
Tool Changer
Tool Storage Capacity
24 (32)
Max Dia.(at full capacity)
4" / 101 mm
Max Dia.(Adjacent Empty)
5.9" / 150 mm
Max. Length of tool stored
11.8" / 300 mm
Tool Weight (Max)
33 lbs / 15 kg
Tool-to-Tool (avg)
5 sec
General
Floor Space Requirement
198" x 237"
5,029 x 6,020 mm
Height (Maximum)
150"
3,810 mm
Shipping Weight
59,400 lbs
26,943 kg
