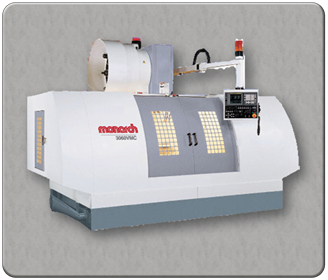

Available with either 60 or 70 inches of X axis travel with standard 31.5 inches Y axis travel. Box way design on all axies. Spindles available with either 40 or 50 taper in either a belt drive or gear drive version.
Axis Travels
Inch
Metric
Travel in X Axis
60"
1524 mm
Travel in Y Axis
31.5"
800 mm
Travel in Z Axis
30"
762 mm
Work Area
Work Area in X Axis
67"
1702 mm
Work Area in Y Axis
28.5"
724 mm
Spindle Nose to Table(max)
37.9"
962 mm
Spindle Nose to Table(min)
7.9"
200 mm
Table Load (max)
5,500 lbs
2,500 kg
Axis Specifications
Feed Rate - X axis
300 ipm
7.62 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
787 ipm
20 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
472 ipm
12 mpm
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.0001"
0.0025 mm
Spindle Information
Direct
Geared
Spindle Speed Ranges
6,000
Spindle Chuck Taper
Cat 50
Spindle Drive HP
20 hp / 14.9 kw
30 hp / 22.3 kw
Max Torque (Std)
140 ft lbs / 189 nm
450 ft lbs / 610 nm
Drive System
Belt
Gearbox
Tool Changer
Tool Storage Capacity
24
Max Dia.(at full capacity)
4.3" / 109 mm
Max Dia.(Adjacent Empty)
Max. Length of tool stored
11" / 279 mm
Tool Weight (Max)
33 lbs / 15 kg
Tool-to-Tool (avg)
5 sec
General
Floor Space Requirement
183" x 125"
4648 x 3175 mm
Height (Maximum)
123"
3124 mm
Shipping Weight
31,000 lbs
14,090 kg
72.8"
1850 mm
78.7"
1,999 mm
37.1"
942 mm
7.1"
180 mm
6,000 lbs
2,727 kg
20 hp / 15 kw
30 hp / 22 kw
216" x 125"
5,486 x 3,175 mm
3,124 mm
32,000 lbs
14,545 kg
