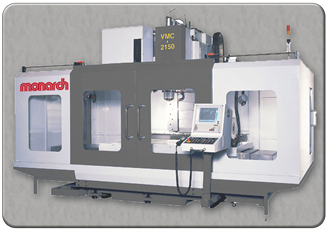

VMC 2150





VMC-2150











Large heavy (84" x 43") machine platform with box way travel on X, Y and Z axis. Large base design prevents axis overhang, preventing any accuracy issues at the ends of travel. 50 taper spindle available as either belt or gear driven version.





Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

84.6"

2,148 mm

Travel in Y Axis

43"

1,092 mm

Travel in Z Axis

35.4"

900 mm

Work Area

Inch

Metric

Work Area in X Axis

86.6"

2,200 mm

Work Area in Y Axis

43"

1,092 mm

Spindle Nose to Table(max)

41.5"

1,054 mm

Spindle Nose to Table(min)

6.1"

155 mm

Table Load (max)

5,500 lbs

2,500 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

315 ipm

8 mpm

Feed Rate - Y axis

315 ipm

8 mpm

Feed Rate - Z axis

315 ipm

8 mpm

Traverse Rate - X axis

600 ipm

15.24 mpm

Traverse Rate - Y axis

600 ipm

15.24 mpm

Traverse Rate - Z axis

600 ipm

15.24 mpm

Positioning (±)

0.00025"

0.0063 mm

Repeatability (±)

0.0002"

0.005 mm

Spindle Information

Cat 50

Spindle Speed Ranges

6,000 (10,000)

Spindle Chuck Taper

Cat 50

Spindle Drive HP

20 hp / 15 kw (35 hp / 26 kw)

Max Torque (Std)

70 ft lbs / 94 nm (400 ft lbs / 542 nm)

Drive System

Belt Drive (Gear)

Tool Changer

Cat 50

Tool Storage Capacity

24 ( 32, 40)

Max Dia.(at full capacity)

9.8" / 248 mm

Max Dia.(Adjacent Empty)

11.8" / 300 mm

Max. Length of tool stored

11.8" / 300 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)

8 sec

General

Inch

Metric

Floor Space Requirement

205" X 171"

5,207 x 4,343 mm

Height (Maximum)

132"

3,352 mm

Shipping Weight

46,200 lbs

20,956 kg
