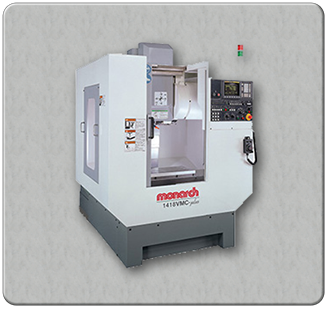

Travel in X Axis

17.7"

450 mm

Travel in Y Axis

13.8"

350 mm

Travel in Z Axis

15"

380 mm

Work Area in X Axis

27.6"

700 mm

Work Area in Y Axis

12.6"

320 MM

Spindle Nose to Table(max)

20.3"

515 mm

Spindle Nose to Table(min)

5.3"

135 mm

Table Load (max)

331 lbs

150 kg

Feed Rate - X axis

590 ipm

15 mpm

Feed Rate - Y axis

590 ipm

15 mpm

Feed Rate - Z axis

590 ipm

15 mpm

Traverse Rate - X axis

1417 ipm

36 mpm

Traverse Rate - Y axis

1417 ipm

36 mpm

Traverse Rate - Z axis

1417 ipm

36 mpm

Positioning (±)

0.0002"

0.005 mm

Repeatability (±)

0.00015"

0.0038 mm

Spindle Speed Ranges

10,000 (12,000)

Spindle Chuck Taper

Cat 40

Spindle Drive HP

7.4 hp / 5 kw

Max Torque (Std)

25 ft lbs / 33 nm

Drive System

belt

Tool Storage Capacity

12

Max Dia.(at full capacity)

3.9" / 99 mm

Max. Length of tool stored

6" / 152 mm

Tool Weight (Max)

11 lbs / 5 kg

Tool-to-Tool (avg)

6 sec

Floor Space Requirement

95.5" x 61"

2,451 X 1,550 mm

Height (Maximum)

86.6"

2,200 mm

Shipping Weight

4,500 lbs

2,041 kg
