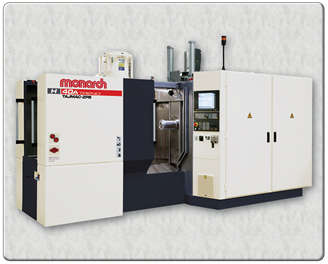

400 mm series horizontal with 2 position rotary pallet system as standard. Available as a geared head version, belt drive or motor spindle with speeds up to 18,000 rpm.
Axis Travels
Inch
Metric
Travel in X Axis
22"
560 mm
Travel in Y Axis
Travel in Z Axis
Rotary Axis ('B') Travel
360°
Work Area
Work Area in X Axis
15.7"
400 mm
Work Area in Y Axis
Spindle Nose to Table(max)
27"
686 mm
Spindle Nose to Table(min)
5.12"
130 mm
Table Load (max)
660 lbs
300 kg
Axis Specifications
Feed Rate - X axis
590 ipm
15 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1,968 ipm
50 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Rotary Axis Speed
6.7 Seconds for 360°
Positioning (±)
0.00015"
0.004 mm
Repeatability (±)
0.0001"
0.0025 mm
Rotary Positioning
6 sec
Rotary Repeatablility
3 sec
Pallet Size
15.7" x 15.7"
400 mm x 400 mm
Pallet Exchange Time
10 sec
Spindle Information
40 Taper
Spindle Speed Ranges
10,000 rpm
Spindle Chuck Taper
SK 40 (Cat 40)
Spindle Drive HP
24.8 hp / 30 kw
Max Torque (Std)
84 ft lbs / 115 nm
Drive System
Belt Transmission
Tool Changer
SK40 Taper (Cat 40)
Tool Storage Capacity
45
Max Dia.(at full capacity)
3.34" / 85 mm
Max Dia.(Adjacent Empty)
4.9" / 125 mm
Max. Length of tool stored
11.8" / 300 mm
Tool Weight (Max)
15.4 lbs / 7 kg
Tool-to-Tool (avg)
4 sec
General
Floor Space Requirement
209.9" x 88"
5,332 x 2,235 mm
Height (Maximum)
113"
2,871 mm
Shipping Weight
18,960 lbs
8,600 kg
