TVMC-2000 / 3000

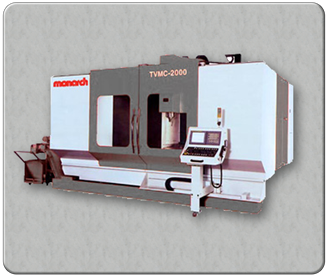

TVMC-2000










Traveling column, fixed table machine with either 90" or 130" of axis travel. 40 taper spindle standard with optional 50 taper. Tilt spindle (Left/Right) also is available as an option.





Detailed Specifications

  TVMC-2000
  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

91.3"

2,319

Travel in Y Axis

28.3"

7,108 mm

Travel in Z Axis

24"

609 mm

Work Area

Inch

Metric

Work Area in X Axis

94"

2,388 MM

Work Area in Y Axis

24"

610 mm

Spindle Nose to Table(max)

29.92"

760 mm

Spindle Nose to Table(min)

5.9"

150 mm

Table Load (max)

6,600 lbs

3,000 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

393 ipm

10 mpm

Feed Rate - Y axis

393 ipm

10 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

1300 ipm

33 mpm

Traverse Rate - Y axis

1890 ipm

48 mpm

Traverse Rate - Z axis

1400 ipm

35.5 mpm

Positioning (±)

0.0002 in

.005 mm

Repeatability (±)

0.0001 in

.0025 mm

Spindle Information

40 Taper

50 Taper

HSK-63

Spindle Speed Ranges

10,000 rpm (12/15/20)

10,000 rpm (12/15/20)

10,000 rpm (12/15/20)

Spindle Chuck Taper

Cat 40

Cat 50

Cat 50

Spindle Drive HP

20 hp

29 hp

40 hp

Max Torque (Std)

35 ft lbs / 47Nm

35 ft lbs / 47Nm

35 ft lbs / 47Nm

Drive System

Direct

Direct

Direct

Tool Changer

40 / 50 / HSK-63

Tool Storage Capacity

24 (32/40)

Max Dia.(at full capacity)

5.1" / 129 mm

Max Dia.(Adjacent Empty)

9.8" / 248 mm

Max. Length of tool stored

11.8"

Tool Weight (Max)

15 lbs 6.8 kg

Tool-to-Tool (avg)

5 sec

General

Inch

Metric

Floor Space Requirement

258" x 172"

6,553 x 4,368 mm

Height (Maximum)

132"

3,353 mm

Shipping Weight

38,500 lbs

17,500 kg


TVMC-3000
  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

130.7"

3302 mm

Travel in Y Axis

28.3"

7108 mm

Travel in Z Axis

24"

609 mm

Work Area

Inch

Metric

Work Area in X Axis

133"

3378 mm

Work Area in Y Axis

24"

610 mm

Spindle Nose to Table(max)

29.92"

760 mm

Spindle Nose to Table(min)

5.9"

150 mm

Table Load (max)

6,600 lbs

3,000 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

393 ipm

10 mpm

Feed Rate - Y axis

393 ipm

10 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

985 ipm

25 mpm

Traverse Rate - Y axis

1260 ipm

32 mpm

Traverse Rate - Z axis

1400 ipm

35.5 mpm

Positioning (±)

0.0002 in

.005 mm

Repeatability (±)

0.0001 in

.0025 mm

Spindle Information

40 Taper

50 Taper

HSK-63

Spindle Speed Ranges

10,000 rpm (12/15/20)

10,000 rpm (12/15/20)

10,000 rpm (12/15/20)

Spindle Chuck Taper

Cat 40

Cat 50

Cat 50

Spindle Drive HP

20 hp

29 hp

40 hp

Max Torque (Std)

35 ft lbs / 47Nm

35 ft lbs / 47Nm

35 ft lbs / 47Nm

Drive System

Direct

Direct

Direct

Tool Changer

40 / 50 / HSK-63

Tool Storage Capacity

24 (32/40)

Max Dia.(at full capacity)

5.1" / 129 mm

Max Dia.(Adjacent Empty)

9.8" / 248 mm

Max. Length of tool stored

11.8"

Tool Weight (Max)

15 lbs 6.8 kg

Tool-to-Tool (avg)

5 sec

General

Inch

Metric

Floor Space Requirement

274" x 172"

6,960 x 4,368 mm

Height (Maximum)

132"

3,353 mm

Shipping Weight

46,200lbs

21,000 kg
