MCV-1210





TVMC-2000

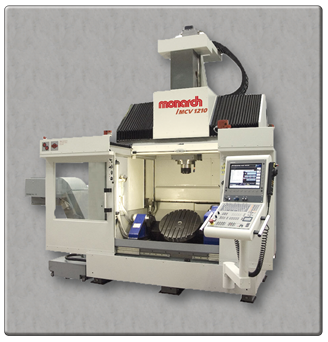

  Shown with optional two axis 600 mm rotary / tilt table.




Small overhead high speed gantry design availible as a 3, 4 or 5 axis design. Quick change over to add a rotry table minimizes set up time. Adding a two axis table allows for 5 axis high speed contouring with C axis totation speeds up to 100 rpm.



Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

39.3"

1,000 mm

Travel in Y Axis

31.5"

800 mm

Travel in Z Axis

23.7"

600 mm

Work Area

Inch

Metric

Work Area in X Axis

47.2"

1,200 MM

Work Area in Y Axis

39.3"

1,000 mm

Spindle Nose to Table(max)

27.5"

700 mm

Spindle Nose to Table(min)

5.9"

150 mm

Table Load (max)

6,600 lbs

3,000 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

787 ipm

20 mpm

Feed Rate - Y axis

787 ipm

20 mpm

Feed Rate - Z axis

787 ipm

20 mpm

Traverse Rate - X axis

1,574 ipm

40 mpm

Traverse Rate - Y axis

1,574 ipm

40 mpm

Traverse Rate - Z axis

1,574 ipm

40 mpm

Positioning (±)

0.00016 in

.004 mm

Repeatability (±)

0.00012 in

.003 mm

Spindle Information

40 Taper

Spindle Speed Ranges

15,000

Spindle Chuck Taper

Cat 40

Spindle Drive HP

33 hp / 25 kw

Max Torque (Std)

116 ft lbs / 157 nm

Drive System

Motor Spindle

Tool Changer

40

Tool Storage Capacity

30

Max Dia.(at full capacity)

3.1" / 80 mm

Max Dia.(Adjacent Empty)

4.5" / 115 mm

Max. Length of tool stored

9.8" / 250 mm

Tool Weight (Max)

14.3 lbs / 6.5 kg

Tool-to-Tool (avg)

6 sec

General

Inch

Metric

Floor Space Requirement

169" x 166"

4,300 x 4,220 mm

Height (Maximum)

150.7"

3,830 mm

Shipping Weight

25,353 lbs

11,500 kg
